SAM-3 Boiler Flame

Automatic Fume Pipe Cleaning System

Product Details

SAM-3 technology; It protects the pipes of water or smoke tube boilers from soot, lime, etc. from sediments

is one of the specialized kits designed for purification.

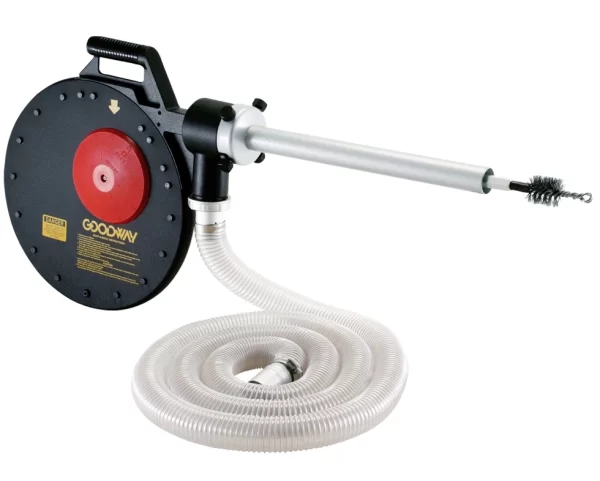

The SAM-3 is ideal for cleaning flue smoke pipes as it is lightweight, compact and portable and requires only 60 cm of working space in front of the boiler. For cleaning the boiler tube, it is sufficient to place the fixing head of the SAM-3 device into the boiler tube, fix it on the boiler tube and press the automatic trigger (forward and reverse control). On the device, you can see how the steel band moves forward or backward with the brush. There is a rotary scale showing how far it has moved.

SAM-3 Device works in any position (straight, reverse, side, diagonal, etc.) by placing the centering head inside the boiler tube and standing still.

While the cleaning head with the steel strip moves automatically in the forward / backward direction along the boiler pipe, the impurities such as soot, tar, lime deposits are sucked into the chamber at the same time by the vacuum device.

With the turn of a knob, an operator can completely clean the boiler in a fraction of the time required by other cleaning methods.


  • Simple to use – requires minimal training
  • Interchangeable cleaning attachments
  • Carrying handle and stand – easy transportation and storage
  • Stretchable spring steel band
  • Automatic sliver extension and collection
  • Vacuum attachment – removes debris.


  • Motor Power : 0.5 HP (0.4 Kw)
  • Input Power: 3.5 amps, 230V, 50/60 Hz
    Optional: 7 amps, 115V, 50/60 Hz

SIZE : 550 mm

  • STEEL STRIP LENGTH: 7900 mm.
  • VACUUM HOSE : Outside ø51 mm, length 370 mm
  • Pipe Diameter Range (mm ID) : 32 mm -max. 100 mm
  • Dimensions: 610mm (height) x 710mm (width) x 230mm (depth)
  • Weight 17 kg
